3D PodoScanner

3D TECHNOLOGY FOR THE PRODUCTION OF ORTHOTIC INSOLES

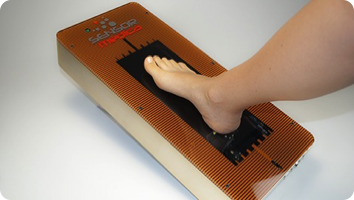

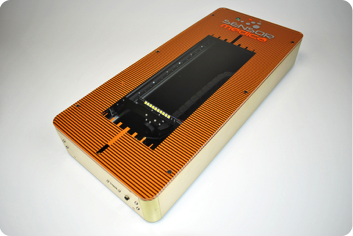

3D podoscan is a high definition optoelectronic device for the 3D acquisition of foot morphology. 3D podoscan has a precision of 1 mm, allows acquisition of the foot image in off load, semi load and under load.


Capture the foot, a foam box, or a plaster wrap of the foot.

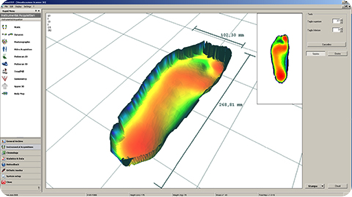

3D Podoscan is principally used for customized orthotics production and, combined with foot pressure data acquired with baropodometric platforms, allows the correct orthotic to be designed to satisfy the patient’s needs. Acquired images are managed inside freestep software and immediately exported in our 3D modelling software easycad. In addition, the images can be used for manufacturing foot casts.


Technical Specification


0,1mm Accuracy

Full intergration into FreeSTEP

1 Click transfer to EasyCAD

Foot plantar Non/Semi/Full-Weight

Foam impression and plaster cast

2.9 sec or 5.8 sec includes color

Normal office lighting, no dark room

Clean 3D mesh, +/- 1.0mm Accuracy

3D (STL/WRL), 2D color (plantar and heel)

Foot metrics, shoe size, arch type, heel type

Foot report and annotation with diagnosis

Heel laser and camera for heel analysis

Size/Weight 600 X 265 X 90 mm / 6.8 Kg

Load Capacity 150 Kg

AC 120~240V 50/60HZ

One year warranty
